Dustproof Fanless Computer UCM-0822A
Techno Veins(Japan)

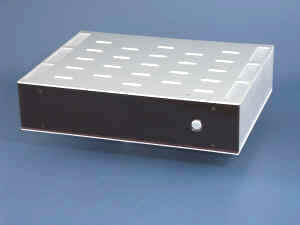

front_stay_bb_2560.JPG (886945 バイト)Have you ever experienced computer trouble or damage caused by dust accumulation?
Have you ever annoyed with “drone” when computer is working?
If yes,UCM-0822A is your choice.

UCM-0822A is a unique computer; no cooling fan inside, no ventilation hole on the case.
It is sealed; dustproof computer!


We developed a unique heat dissipation system; heat generated inside of the UCM-0822A case is cooled by big heat sinks of both sides and the whole of aluminum case. No cooling fan inside. No ventilation hole on the case.
Provided port caps for no-use ports.
UCM-0822A passed Japanese dustproof test, JIS C0920 IP5X.

Easy maintenance

To maintain HDD, just only open back lid. Both case structure and cable arrangement are designed for easy maintenance.

Unique method

UCM-0822A has no FDD or CD-ROM drive; they are optional. Users can use those external devices via USB port if necessary, in installation/maintenance; this method reduces heat value and avoids trouble caused by dust accumulation.


UCM-0822A is equipped with Fluid Dynamic Bearing 2.5 inches HDD that provides stable and silent working.

Compact & Slim

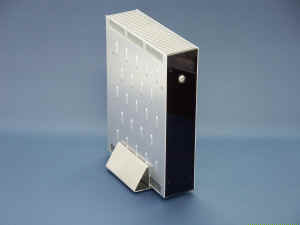

UCM-0822A can be placed on horizontal position or vertical position. To install it in vertical position, please use optional vertical stand.
Power Supply is built in the case.


UCM-0822A, embedded VIA EPIA-V motherboard. Standard OS can be used as Windows, Linux and etc.




Provisional specification
Model Number UCM-0822A
OS Windows Me, XP, Linux, etc..
Memory Standard: 256MByte PC133 DIMM (Free Memory Slots x 1)
Hard Disk Standard: 2.5inch 20G Byte (max:2Drives)
Video VGA onboard AGP 4X Graphics
Sound 2ch AC’97 CODEC
I/O Keyboard, Mouse, Serial, Parallel, LAN (10/100Base),USB*2Ports, Video-Out, Line In / Out / Mic
Temperature Working: 5oC to 40oC, Storage: -10oC to 60oC refer to Japanese page()
Humidity  10% to 80% Relative (No dew)
Dimensions 31cm(W) * 23cm(D) * 7cm(H)
Power AC 90V to 254V


Exhibition news:

September 28, 2003.     Tokyo JAPAN.. In VIA Technology Forum 2003 Tokyo.

via_booth1.jpg (49212 バイト)September 22 - 26, 2003.     Taiwan Taipei. In Computex Taipei 2003,


Operate 24 hours in Japanese coffee shop

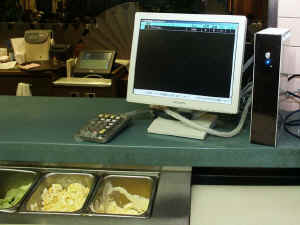

Cafe Chat Noir (Ryougoku, Tokyo) use UCM-0822A as a kitchen computer.

Ryogoku is very famous for "Sumo" Coffee shop Chat Noir UCM-0822A is used for kitchen ordering system

“Chat Noir Company Ltd.” has various coffee shop chains in Japan, “Coffee House Chat Noir”, “Cafe Veloce” and etc.
Before, they had experienced computer troubles and damage caused by oily air in kitchen. They evaluated our UCM-0822A and confirmed the excellent performance as a dustproof computer. They chose our UCM-0822A for their kitchen ordering system; UCM-0822A operates 24 hours in their shops.

Price Information


Model number UCM-0822A
List price:    Open
In Japan, retail price is 128,000yen. (US$1.00 is equivalent 105yen).
We can sell UCM-0822A as sample, because no safety approval for foreign
sales yet; we can consider it depending on purchase QTY.

"Bare-born" is available, too; without memory/HDD.
In this case, safety approval is not required.

Please feel free to contact us if you have any questions.

1) Term: FOB Tokyo
2) Payment: T/T in advance
3) Lead time: 30 days after receipt of payment

To export UCM-0822A

Each country has own safety approval.
We can sell UCM-0822A as evaluation sample now.
We have a plan to get IEC CB report by the end of 2003.
Depending on purchase order quantity, we can apply a safety approval that you need.

International Distributor/Reseller


We have a business partner in Taiwan.
Company Name : CANMAX Technology Ltd.
Contact person Ms. Euginia Chang
TEL: 886-2-2647-7797
7F, No. 183, Section 1, Tatung Road, 221 Hsi Chih, Taipei Hsien, Taiwan, R.O.C.

Outside of Taiwan, please contact us directly.

We are looking for business partners who can cooperate with us to sell our computer in your country.

Techno Veins Co., Ltd.
Tsunashima Bldg. 2F, 31-4,
Yushima 3, Bunkyo, Tokyo, 1130034, JAPAN.
Tel: 813-3832-7460 FAX: 813-3832-7430





Technical reference
