| The Hand-held laser bar code scanner Voyager Series |
MS9540-PS Voyagercg™
The
US:Metrologic Inc. manufacture
- By the single line scan by the red laser beam, it distinguishes between the various bar code automatically. It reads a bar code at high speed and correctly.
(CodeGate)
With the button in the called upper part of the scanner, the timing to read
a bar code in the laser line can be operated. The bar code sheet and
Stacking bar code and so on became easy-to-use.- The polished design improved the image of the conventional bar code scanner mainly.
- The scan speed (the scan rate) became twice conventional single line scan model (MS951) and the more comfortable operation became possible.

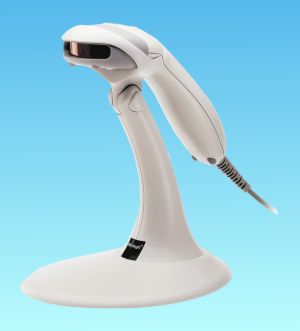

- The attachment exclusive use desk stand can use as the projection scanner without having a scanner. Also, when having to the hand, with the sensor, it changes to the handheld mode automatically in the cutting.
- The internal IR sensor works a laser beam automatically when the object approaches.
- It is possible to handle easily with the one hand because it is light-weight and it is small.
- The big bar code and the bar code of the left a little position can be read.
- Because it has all controllers, the interface box of the external is unnecessary to the scanner main unit.
- DOS/V*1(PC-AT,PS/2) It connects with the keyboard connector of the personal computer in the connection. There is not special entry software for the scanner connection, being necessary. Of course, usual keyboard, too, can be used. AC adapter is attached for the keyboard connector which the electric current can not take.
- When reading a bar code right, it outputs bar code data + return to have been typed from the keyboard.
- The kind of the bar code to read can be set.
The menu sheet can do the setting of scanner feature such as the reading kind. Setting contents and software are preserved in inner Flash ROM.
| The name of the goods | MS9540-PS |
|---|---|
|
Compatible personal computer |
The DOS/V personal computer*1(PS/2, PC-AT) |
|
The connection connector |
MiniDIN 6Pin/5Pin DIN |
|
JAN, EAN, UPC, Interleaved 2 of 5(ITF), CODABAR(NW-7), CODE39, FULL ASCII CODE39, CODE93, CODE11, MSI-Plessey, CODE128, etc |
|
|
The reading depth |
|
|
The reading width |
A maximum of 249 mm (The time of the reading depth of 200 mm) |
|
The PCS value |
0.35Min |
|
The power |
DC5V±0.25V |
|
The consumption electric current |
165 mA, 120 mA at the time of the standby in case of operation |
|
The reading confirmation |
Seven kinds of beeps and the LED lamp |
|
The interface |
The keyboard wedge |
|
The light source |
The red laser 10 nm of 650nm± 0.96mW(Peak) |
|
The resolution |
The minimum bar width 0.19mm(Code39) |
|
The scan speed |
The 72±2 scan/the second |
|
The reading angle |
Roll:42º, Pitch:68º, Yaw:52º |
|
The cable |
1.8 m (the curl condition), a maximum of 2.7 m |
|
The weight |
149 g of main unit |
|
The warm humidity condition |
In case of operation : 0-40ºC 5-95% |
|
Outside the revolt light |
Max 4842Lux |
|
The attachment |
The exclusive use desk stand, the PC-AT:PS/2
connection cable, the AC adapter |

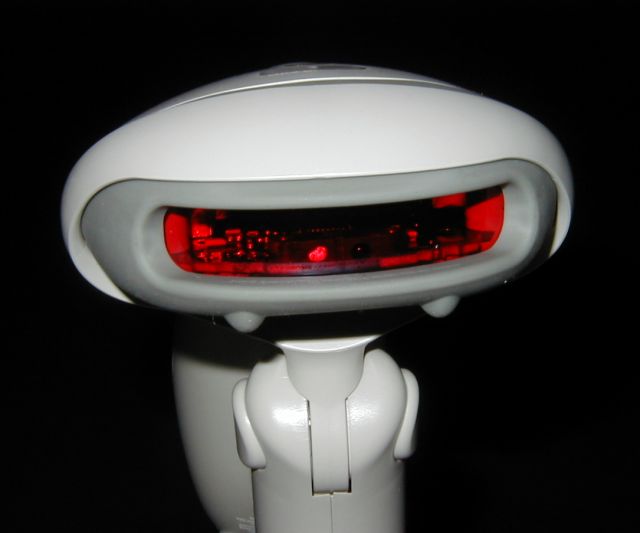

[Oval at the center of the MS9540-PS main unit]
The size
When making a grip part a level condition| The length |
198mm |
| It is width of the side of the mouth Reading. |
78mm |
| The grip part width |
45mm |
| The grip part thickness |
40mm |
The scan area and the IR
sensor sensing range

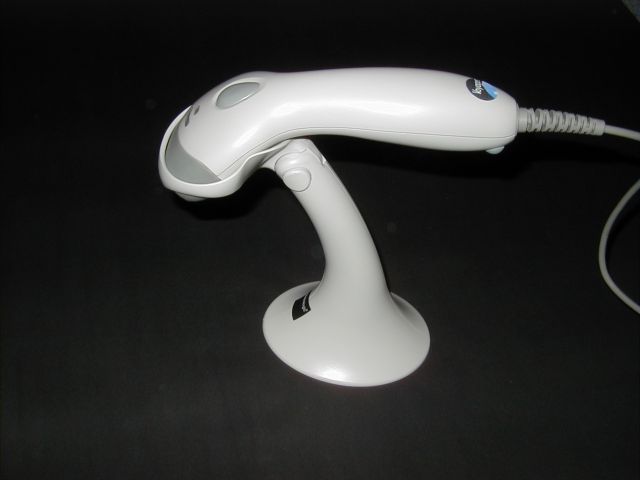

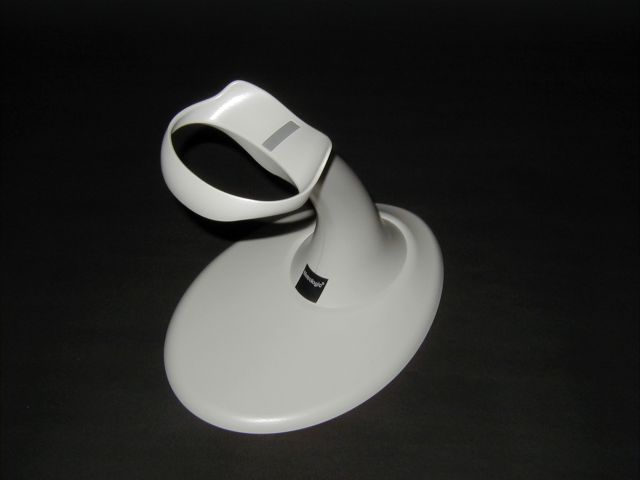

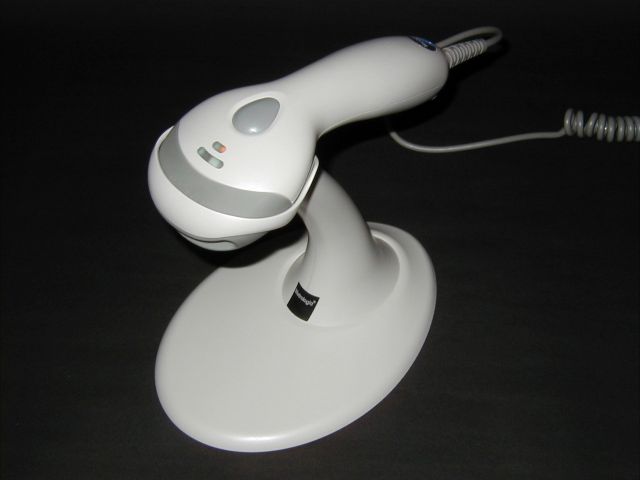

The desk stand installation : When fixing a desk stand with the screw, the desk stand base can be used by removing it. (The photograph right)
This catalog entry is not in the previous announcement and sometimes changed
into it Also, the performance reference value of the manufacturer publication of
to be specified is not the one which publicizes a typical value in case of
factory shipment or a value in design and guarantees the performance of the
product individual.
*1 Note
point in case of DOS/V personal computer connection There is a model that the
keyboard inside the main unit becomes in the disabling in the DOS/V notebook
personal computer when connecting a keyboard with the outside. This product is the goods which are selling by Techno Veins's importing from
the Metro logic Inc. directly. In case of buying demanding, being under to
support goods, we receive this product with the our company support window from
us.
This is one by the notebook personal computer itself specification. Therefore,
when connecting MS9540 and the outside keyboard with this personal computer, the
keyboard inside the personal computer can not be used.
Also, MS9540 is designed not to be in the keyboard and the combination and the
keyboard and to use.
PS/2 keyboard ID can be published by the setting.
Last Updated2011/09/09
