| CCD The bar code scanner The keyboard wedge interface |
CMX85T-PS, CMX85T-USB
- It brings a scanner close to the bar code only and it is possible to read a bar code easily.
- It is the scanner which is easy for high-speed scan rate (200Scan/Sec) by the pipeline processing and the maximum reading depth of 50 mm to use by the register business and so on. (The following explanation)
- Automatically the distinction, its seeing a bar code at high speed and Reading correctly in the various bar code with the CCD image sensor
- It realized 80 mA of consumption electric currents and energy saving in case of operation.
- The power and the outside system are unnecessary. Windows personal computer (DOS/V*1It connects with PC-AT, the keyboard connector (BCM850-PS) of PS/2) or USB connector (BCM850-USB).
- It is possible Reading the seeing. keyboard and for the special software to use a bar code as the necessary not being. keyboard data.
- When the read bar code is right, it outputs the terminator code which set bar code data +. (It is possible to change in the setting.)
- The kind of the bar code to read can be limited.
- The ASCII code can be added to the place around the read bar code.
- In case of not being outside keyboard use, the scanner is independent and this machine can publish keyboard ID.
- Reading, in the seeing condition, of that it is possible to set. again, setting contents are preserved in inner EEPROM by the menu sheet.
| The name of the goods | CMX85T-PS | CMX85T-USB |
| Compatible personal computer | The Windows personal computer (PS/2, PC-AT) | USB interface compatible personal computer |
| The connection connector | MiniDIN 6Pin | USB"A" |
| The reading bar code | JAN/ EAN/ UPC/ ITF/ CODABAR(NW-7)/ CODE39/ CODE32/ CODE11/ CODE93, CODE128/the others |
|
| The maximum reading depth | 50 mm (The minimum width of 0.38 mm, PCS=0.9) | |
| The reading width | A maximum of 110 mm | |
| The PCS value | Equal to or more than 0.3 | |
| The power | 5% of DC5V± (It supplies from the personal computer main unit). | |
| The consumption electric current | The time of the reading : Of 75-80 mA, standing-by : 10 mA | |
| The reading confirmation | The buzzer sound (the volume adjustment) and the LED lamp | |
| The interface | The keyboard wedge | USB |
| The light source | Red LED 660 nm | |
| The reading sensor | The CCD image sensor 2048 pixel | |
| The resolution | 0.127mm | |
| The scan speed | 200 pieces of scan/the second | |
| The cable | The about 1.7-m straight | |
| The main unit size | About 166 × 90 × 68.4 The mm (The left figure reference) (The time of the grip level condition) |
|
| The weight | 165 g of main unit | |
| The warm humidity condition | In case of operation : 0-40°C 5-95% Of safekeeping : 10-60°C 5-95% Be in neither dewfall. |
|

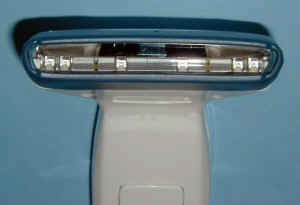

The scanner reading mouth

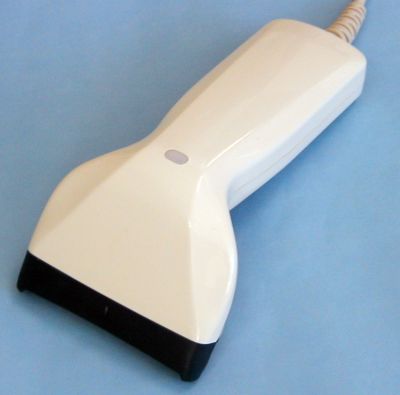

The outward form figure
The explanation
To realize high-speed scan operation, it heavy-izes to Reading process and the decoding processing of a bar code by the image in 2 from CCD and it is doing concurrently working pipeline processing. Because the decoding of the bar code completes while seeing of the image from CCD Reading, the scan data is used for all by the high-speed decoder of the 400 scan class and works in 200 of being real pieces of scan/the second.
This catalog entry is not in the previous announcement and sometimes changed
into it Also, the performance reference value of the manufacturer publication of
to be specified is not the one which publicizes a typical value in case of
factory shipment or a value in design and guarantees the performance of the
product individual.
This product is the product which was manufactured in the Taiwan CANMAX Inc. with the Techno Veins specification.
